OVERVIEW

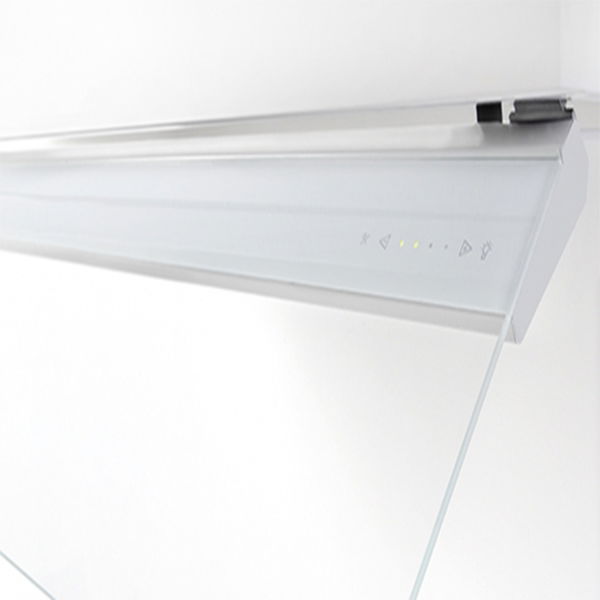

The 780 Cooker Hood can be invisibly integrated into a wall cabinet with minimum depth of between 34 and 35 cm, this is a stylish hood and is perfect for modern kitchens.
LED lighting is highly energy efficient and provides attractive, white and even lighting for the hob area and lighting ensures optimal visibility when cooking.
Intensive speed setting with revert gives a quick intensive 6 min. burst to clear strong odours and then reverts back to the normal setting.
Tilting cover in transparent glass for optimum capture of cooking vapours.
Touch control is the latest in technology and are easy to clean because they remain flush to the control panel of the canopy Cooker Hood and can just be wiped clean.
OVERVIEW
Type : Telescopic
Motor : Integrated/separate (inside)
Recirculation : Optional
Silencer : Integrated
Dimensions (W x D x H) : 52 x 28 x 32,1 cm
Minimum width kitchen cabinet (W) (mm) : 60 cm
Minimum /maximum depth kitchen cabinet (D) (mm) : 34 cm - 35 cm
Maximum flow : 815 m ³/u
Width : 60 cm
Number of speed levels : 3 + Power
Flow/pressure - speed level 1 : 257 m ³/u / ... Pa
Flow/pressure - Speed level 2 : 460 m ³/u / ... Pa
Flow / pressure - Speed level 3 : 620 m ³/u / ... Pa
Flow/pressure - Power speed level : 713 m ³/u / 390 Pa
Sound level 1(sound capacity/acoustic pressure) : 39 dB(A) re 1 p W / 29 dB(A)
Sound level 2 (sound capacity/acoustic pressure) : 51 dB(A) re 1 p W / 41 dB(A)
Sound level 3 (sound capacity/acoustic pressure) : 58 dB(A) re 1 p W / 48 dB(A)
Sound level Power (sound capacity/acoustic pressure) : 62 dB(A) re 1 p W / 51 db(A)
Type of control : Electronic
Type of command : Touch control
Lighting : led strip (8 W)
Number of metal grease filters : 2
Installation accessories : Optional
Positioning exhaust : Top
Total max. consumption : 115 W
Energy efficiency index (class) : A+
Annual energy consumption (kWh/year) : 27,6
Fluid Dynamic Efficiency (class) : A
Eco Smart : yes
Light efficiency (class) : A
Grease filter efficiency (class) : C
Consumption in stand-by mode Ps (W) : 0,4
- Telescopic cooker hood
- Transparent glass finish
- Touch Control
- Led lighting
- Design filter with magnetic strip
- Silencer
- Indication: 3 speed levels + power function
- Auto Stop
- Grease filter cleaning indicator
- Recirculation optional (680400)
- In Touch optional
