OVERVIEW

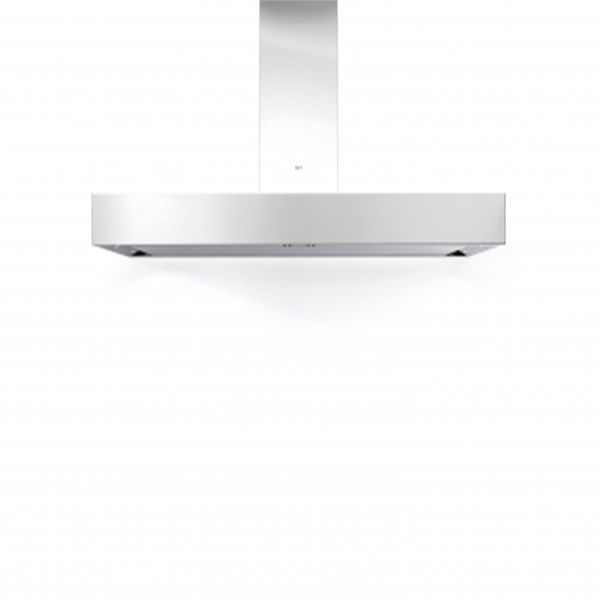

The 7300 is a Wall Mounted Hood, that is also a stylish chimney hood, perfect for in your home, more modern and clean looking.
These are found in many different sizes and materials, the noise performance and power go on hand and hand with out compromising on the design and the visual perfection.
LED lighting is highly energy efficient and provides attractive, even lighting for the hob area.
Especially silent: maximal extractor performance with minimal noise.
Energy efficiency A: maximal extractor performance with minimal energy consumption.
OVERVIEW
Type : Wall hood
Motor : Integrated
Recirculation : Optional
Dimensions (W x D) : 149,8 x 55,4
Width : 150
Height (H min - H max) : 71 - 110 cm
Height (H min-H max) recirculation : 78 - 117 cm
Extension chimney (H max) : 146 cm
Dimensions chimney (W x D) : 30,8 x 26,8 cm
Maximum flow : 1080 m ³/h
F/pressure - speed level 1 : 353 m ³/h / ... Pa
Flow/pressure - Speed level 2 : 442 m ³/h / ... Pa
Flow / pressure - Speed level 3 : 604 m ³/h / ... Pa
Flow/pressure - Power speed level : 839 m ³/h / 410 Pa
Sound level 1(sound capacity/acoustic pressure) : 48 dB(A) re 1 p W / 35 dB(A)
Sound level 2 (sound capacity/acoustic pressure) : 54 dB(A) re 1 p W / 41 dB(A)
Sound level 3 (sound capacity/acoustic pressure) : 61 dB(A) re 1 p W / 48 dB(A)
Sound level Power (sound capacity/acoustic pressure) : 66 dB(A) re 1 p W / 54 dB(A)
Number of speed levels : 3 + Power
Positioning exhaust : Trough top
Diameter exhaust : 15 cm
Number of lamps : 4 x 2 W
Type of lamps : Led
Type of control : Electronically
Type of command : Keys
Number of metal grease filters : 2
Total max. consumption : 278 W
Installation accessories : Optional
Energy efficiency index (class) : C
Annual energy consumption (kWh/year) : 98,3
Fluid Dynamic Efficiency (class) : B
Light efficiency (class) : B
Grease filter efficiency (class) : E
Consumption in stand-by mode Ps (W) : 0,27
* Led lighting
* 11 cm high
* Indication: 3 speeds + Power function
* Subtle and robust design
* Grease filter cleaning indicator
* Auto stop
* Peripheral extraction
* Silencer
* Motor integrated
* Convertible chimney for recirculation
