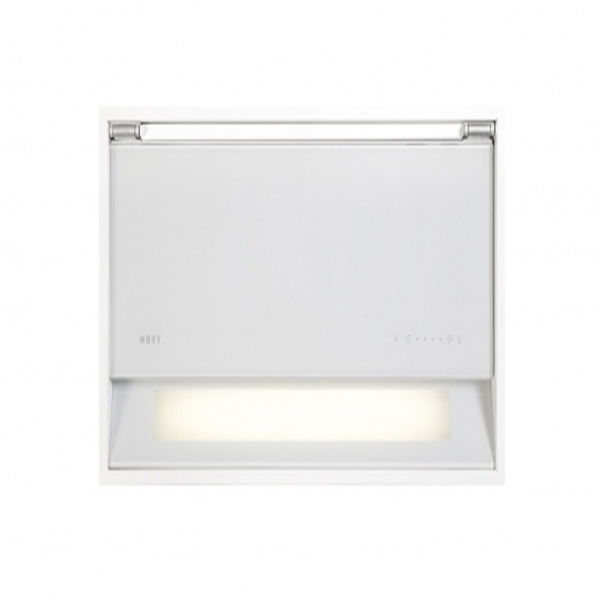

OVERVIEW

The 680 Cooker Hood can be invisibly integrated into a wall cabinet with minimum depth of between 34 and 35 cm, this is a stylish hood and is perfect for modern kitchens.

• LED lighting is highly energy efficient and provides attractive, white and even lighting for the hob area and lighting ensures optimal visibility when cooking.


• Intensive speed setting with revert gives a quick intensive 6 min. burst to clear strong odours and then reverts back to the normal setting.


• Tilting cover in transparent glass for optimum capture of cooking vapours.


• Touch control is the latest in technology and are easy to clean because they remain flush to the control panel of the canopy Cooker Hood and can just be wiped clean.


OVERVIEW

Type : Telescopic
Motor : Integrated/separate (inside)
Recirculation : Optional
Silencer : Integrated
Dimensions (W x D x H) : 52 x 28 x 32,1 cm
Width : 60 cm
Maximum flow : 815 m ³/u
Flow/pressure - speed level 1 : 257 m ³/u / ... Pa
Flow/pressure - Speed level 2 : 426 m ³/u / ... Pa
Flow / pressure - Speed level 3 : 564 m ³/u / ... Pa
Flow/pressure - Power speed level : 652 m ³/u / 366 Pa
Sound level 1(sound capacity/acoustic pressure) : 39 dB(A) re 1 p W / 29 dB(A)
Sound level 2 (sound capacity/acoustic pressure) : 51 dB(A) re 1 p W / 40 dB(A)
Sound level 3 (sound capacity/acoustic pressure) : 58 dB(A) re 1 p W / 48 dB(A)
Sound level Power (sound capacity/acoustic pressure) : 61 dB(A) re 1 p W / 51 dB(A)
Number of speed levels : 3 + Power
Positioning exhaust : Top/back
Type of control : Electronically
Type of command : Touch control
Lighting : TL
Number of metal grease filters : 1
Total max. consumption : 126 W
Installation accessories : Optional
Energy efficiency index (class) : A
Annual energy consumption (kWh/year) : 36,6
Fluid Dynamic Efficiency (class) : A
Light efficiency (class) : D
Grease filter efficiency (class) : B
Consumption in stand-by mode Ps (W) : 0,59
Eco Smart : yes

• Built-in cooker hood

• White glass finish

• Touch Control

• Fluorescent lighting

• Design filter

• Silencer

• Indication: 3 speed levels + power function

• Auto Stop

• Grease filter cleaning indicator

• Recirculation optional (680400)

• In Touch
