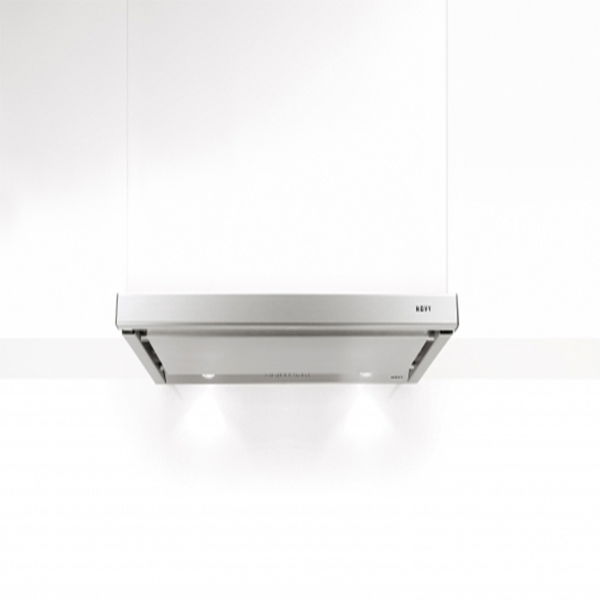

OVERVIEW
The 663 Cooker Hood can be invisibly integrated into a wall cabinet with minimum depth of between 34 and 35 cm, this is a stylish hood and is perfect for modern kitchens.
LED lighting is highly energy efficient and provides attractive, white and even lighting for the hob area and lighting ensures optimal visibility when cooking.
Intensive speed setting with revert gives a quick intensive 6 min. burst to clear strong odours and then reverts back to the normal setting.
Tilting cover in transparent glass for optimum capture of cooking vapours.
Touch control is the latest in technology and are easy to clean because they remain flush to the control panel of the canopy Cooker Hood and can just be wiped clean.
OVERVIEW
Type : Telescopic
Motor : Integrated
Silencer : Integrated
Dimensions (W x D x H) : 60 x 29 x 40,5 cm
Width : 60 cm
Cut out (W x D x H) : Depth of the cabinet must be at least 28 cm
Maximum flow : 940 m ³/h
Flow/pressure - speed level 1 : 285 m ³/h / ... Pa
Flow/pressure - Speed level 2 : 397 m ³/h / ... Pa
Flow / pressure - Speed level 3 : 473 m ³/h / ... Pa
flow/pressure - Power speed level : 614 m ³/h / 418 Pa
Sound level 1(sound capacity/acoustic pressure) : 47 dB(A) re 1 p W / 36 dB(A)
Sound level 2 (sound capacity/acoustic pressure) : 55 dB(A) re 1 p W / 43 dB(A)
Sound level 3 (sound capacity/acoustic pressure) : 58 dB(A) re 1 p W / 47 dB(A)
Number of speed levels : 3 = Power
Positioning exhaust : Trough top
Diameter exhaust : 15 cm
Number of lamps : 2 x 2 W
Type of lamps : Led
Type of control : Electronically
Type of command : Keys
Number of metal grease filters : 1
Total max. consumption : 181 W
Installation accessories : Optional
Recirculation : Optional
Energy efficiency index (class) : C
Annual energy consumption (kWh/year) : 82,1
Fluid Dynamic Efficiency (class) : D
Light efficiency (class) : A
Grease filter efficiency (class) : E
Consumption in off mode Po (W) : 0,21
- Led lighting
- Can be aligned with your wall cabinets
- Cleaning indicator
- Spacer for several cabinet depths for under-cabinet installation
- Front in stainless steel
- Mechanical control
- Stainless steel bottom plate and front
- Perimeter extraction
- Silencer
- Motor integrated
